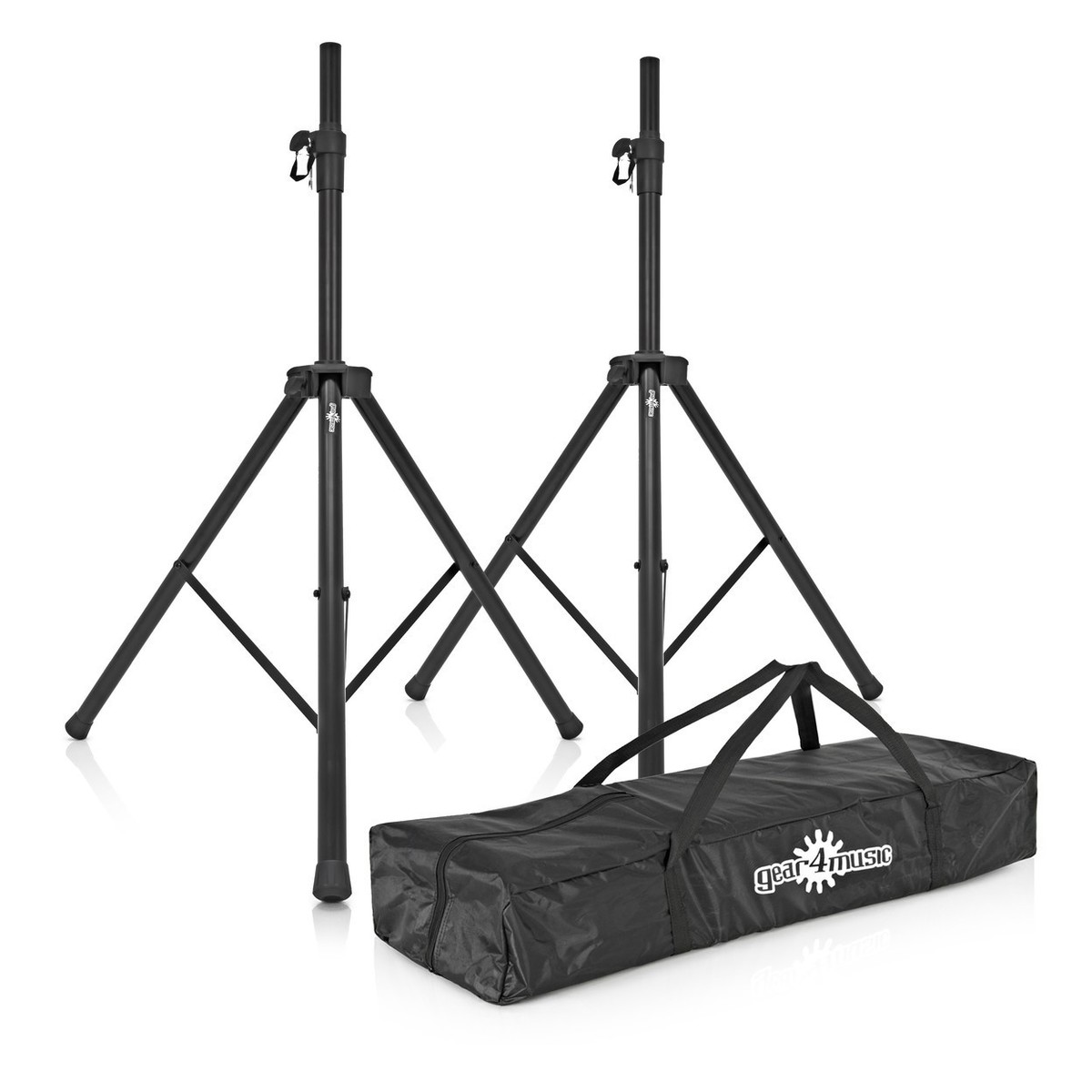

Yamaha DXR8mkII 8'' Active PA Speakers Pair with Stands

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
Price:
$853.00
SKU:
142164
Brand:
Condition:
New
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Full Description

Yamaha's extended warranty

After purchase, simply register your DXR8mkII 8'' Active PA Speaker on Yamaha's website to access their extended 7-year warranty at no extra cost. All you need to do is register and you'll get great live sound performance, with peace of mind for years to come.

Versatile and easy to use

You can easily use the Yamaha DXR8mkII in a variety of configurations. The integrated three channel mixer caters to a range of sound sources thanks to the XLR, 1/4'' jack, and RCA connectors. For positioning, the speaker includes two speaker pole mounts at 0° and 7°, along with rigging points for flown or installation settings.

The cutting edge of audio technology

You can be sure of great sound all the way up to the maximum volume and all the way down to 56Hz. This rock-solid sound performance is thanks to the D-CONTOUR technology. D-CONTOUR is an intelligent multi-band limiter, which adjusts your EQ depending on the output of multiple frequency bands.

Yamaha's advanced FIR-X crossover tuning doesn't just split your sound into low and high frequencies. The crossover also intelligently manages the phase of each band coming out of the crossover. This results in a cleaner sound with no mid-range phase cancellation which can plague lesser two-way speakers.

Features

  • Astounding 130dB SPL output from only 12.8kg of weight
  • Register your product with Yamaha and receive an extended 7-year warranty
  • D-CONTOUR intelligent multi-band compressor optimises your sound
  • FIR-X tuning crossover stops phase issues in the mid-range
  • Two 35mm speaker pole mounts at 0° and 7°
  • Super-efficient Class-D amplification with 700-watts continuous output
  • Integrated 3 channel mixer lets you easily balance input sources
  • Easy to use presets for different rooms and PA configurations

Specifications

General

  • System Type: 2 way, bi-amped, bass reflex powered speaker
  • Frequency Range: 57Hz - 20kHz (-10dB)
  • Coverage Angle: 90° x 60° (H x V) constant directivity horn
  • Crossover Type: FIR-X tuning (linear phase FIR-filter)
  • Max. SPL: 130dB SPL (peak)

Transducers

  • Low Frequency:
    • Diameter: 8'' cone
    • Voice Coil: 2''
    • Magnet: Ferrite
  • High Frequency:
    • Voice Coil: 1.75''
    • Diaphragm: PET
    • Type: 1'' throat compression driver
    • Magnet: Neodymium

Enclosure

  • Material: ABS
  • Finish: Matte
  • Colour: Black
  • Dimensions: 280mm x 458mm x 280mm (W x H x D)
  • Net Weight: 12.8kg
  • Pole Socket: 35mm x 2 (0° or 7°)
  • Rigging Points: Top x 2, Rear x 1, fits for M8 eyebolts

Amplifier

  • Amplifier Type: Class-D
  • Dynamic Power Rating: 1100 watts
  • Continuous Power Rating: 700 watts
  • Cooling: Fan cooling, 4 speeds
  • AD/DA: 24-bit, 48kHz
  • Signal Processing: 48-bit
  • Processors: D-CONTOUR
    • FOH/MAIN
    • MONITOR
    • OFF
  • Input Connectors: 1 x XLR-1/4'' jack combo, 2 x 1/4'' jack, 2 x RCA pins
  • Output Connectors: 2 x XLR
  • Idle Power Consumption: 35W
