Full Description

Raw power

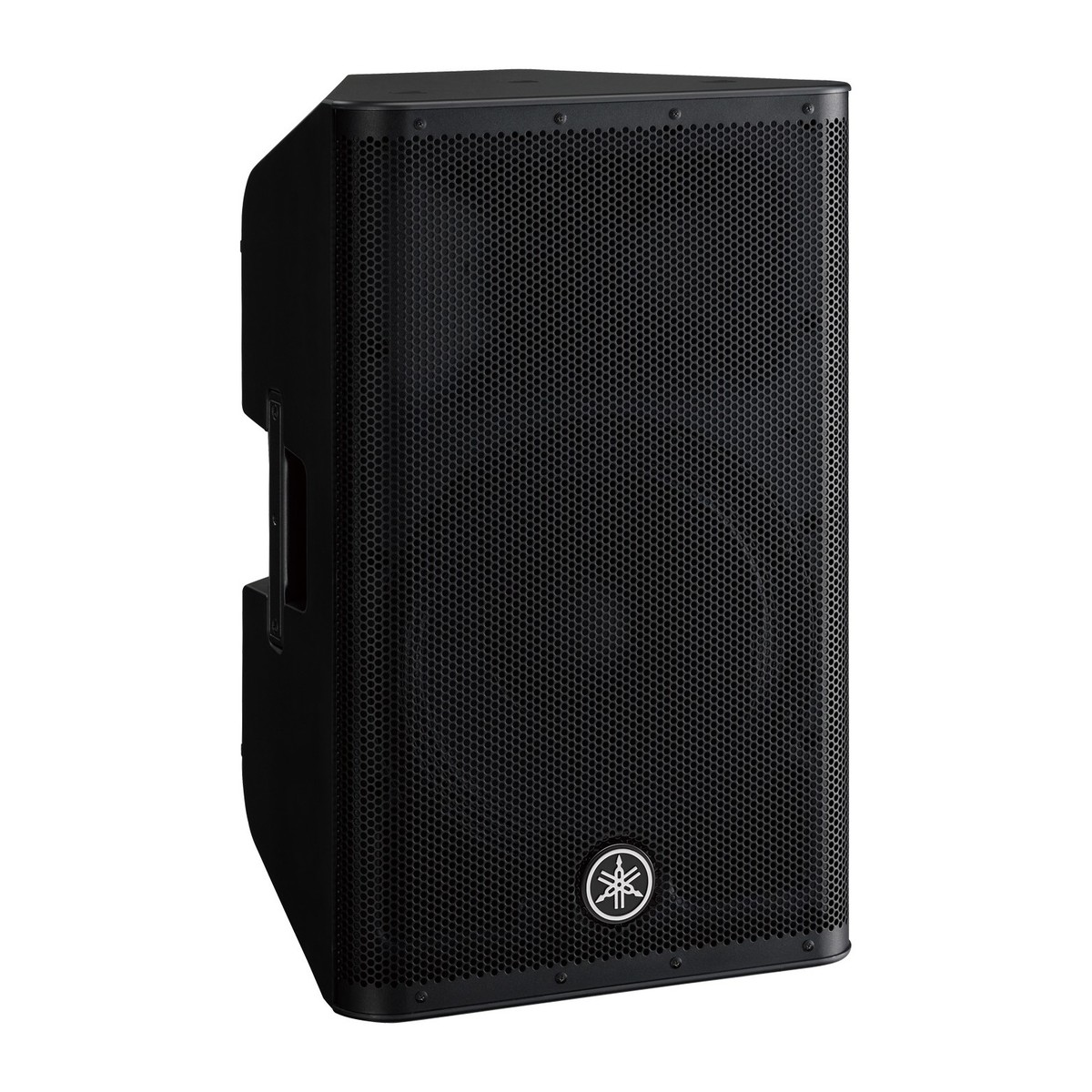

With a 1100 Watt Class-D amplified design, the Yamaha DXR12mkII 12'' Active PA Speaker is powerful enough for any live environment. An intelligent multi-band compressor calculates level-based EQ adjustments. Ensuring consistent clarity. And with the ability to handle obscene sound pressure levels, you can be confident that the DXR12mkII won't be bested.

Fine-tuned

The DXR12mkII is clever enough to give you the best sound possible. Yamaha's innovative FIR-X Tuning intelligently manages frequencies. Combatting phase cancellation, ensuring clarity, and with exceptionally smooth crossover. Meaning you'll always sound exceptional.

Mixed in

Getting a great sound couldn't be easier, thanks to the integrated 3-channel mixer. Each channel has its own volume control to balance your sources. Once you've got a great balance, the sound output can be adjusted to different spaces and applications, with easy contouring preset switches.

Versatile design

You can use the DXR12mkII in a variety of configurations. For floor monitoring applications, a 50° angle is integrated into the cabinet design for easy placement. Two 35 mm speaker pole mounts let you mount the speaker at an angle of either 0°, or 7°.

Features

• Register your product with Yamaha and receive an extended 7 year warranty
• D-contour intelligent multi-band compressor optimises your sound
• FIR-X tuning crossover stops phase issues in the mid-range
• 50° monitor angle when laid on the side
• Two 35 mm speaker pole mounts at 0° and 7°
• Super efficient class D amplification with 700 watts continuous output
• Integrated 3 channel mixer lets you easily balance input sources
• Easy to use presets for different rooms and PA configurations

Specifications

General

• System type: 2 way, bi-amped, bass reflex powered speaker
• Frequency range (-10 dB): 52 Hz - 20 kHz
• Coverage angle: H 90° x V 60° constant directivity horn
• Crossover type: FIR-X tuning (linear phase FIR filter)
• Max SPL (peak): 134 dB SPL

Transducers

• Low frequency:
  • Diameter: 12'' cone
  • Voice coil: 2.5''
  • Magnet: Ferrite
• High frequency:
  • Voice coil: 1.75''
  • Diaphragm: PET
  • Type: 1'' throat compression driver
  • Magnet: Neodymium

Enclosure

• Material, finish, colour: ABS, matte black
• Floor monitor angle: 50° Symmetrical
• Dimensions (WxHxD): 362 x 601 x 350 mm
• Net weight: 18.6 kg
• Pole socket: 35 mm x 2 (0° or 7°)
• Rigging points: Top x 2, Rear x 1, fits for M10 eyebolts

Amplifier

• Amplifier type: Class-D
• Dynamic power rating: 1100 watts
• Continuous power rating: 700 watts
• Cooling: fan cooling, 4 speeds
• AD/DA: 24 bit, 48 kHz
• Signal processing: 48 bit
• HPF/LPF: off, 100, 120 Hz 24 dB/octave
• DSP presets: D-contour, FOH/main, monitor, off
• Input connectors: 1 x XLR/1/4'' jack combo, 2 x 1/4'' jack, 2 x RCA pins
• Output connectors: 2 x XLR
• Idle power consumption: 35 watts
