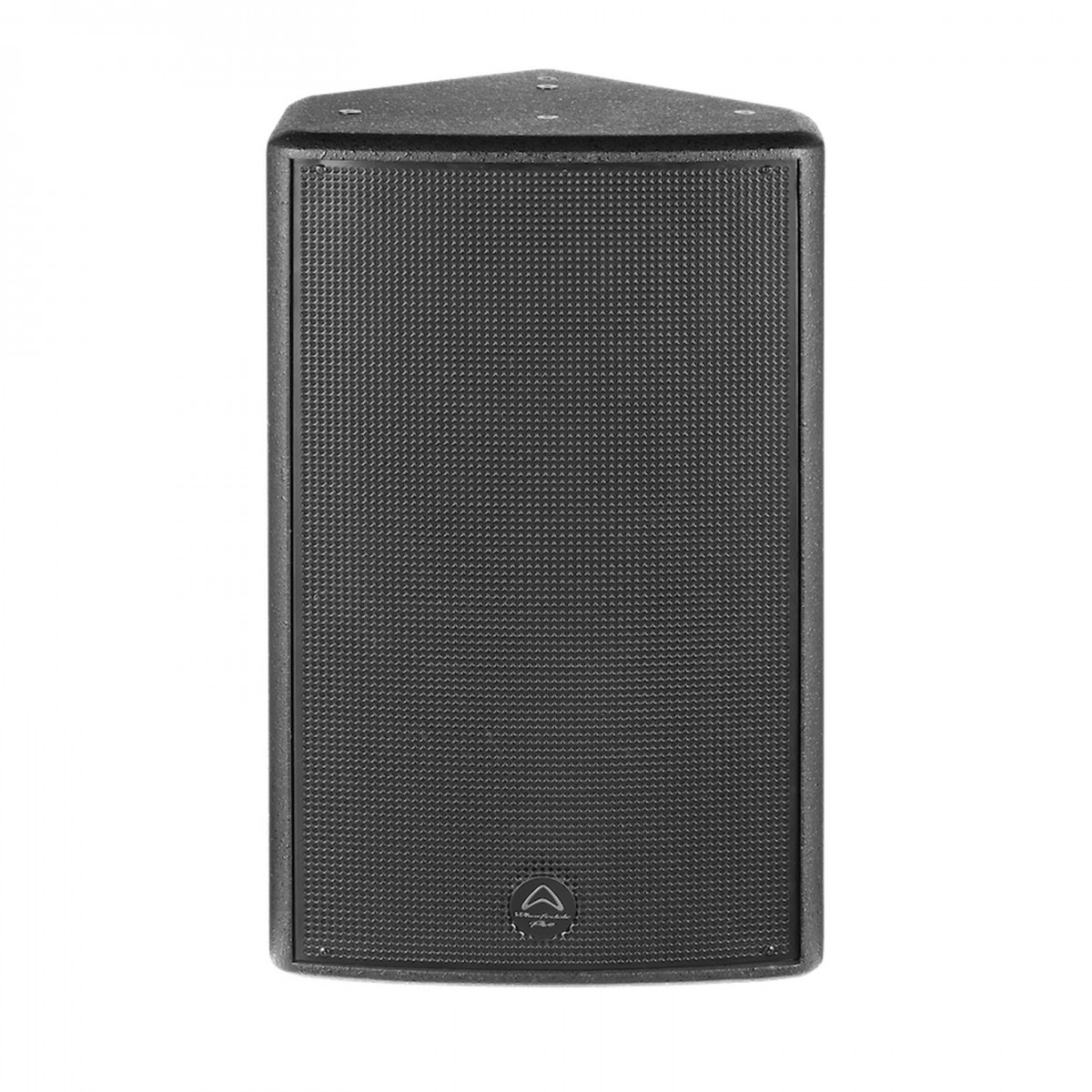

Full Description

Features

• 12-inch two-way passive
• 1.75-inch HF compression driver
• M8 x 20
• 250 watts AES (RMS)
• 500 watts programme
• 1000 watts peak
• 126 dB max SPL @ one meter
• Mounting bracket included

Specification

• System type: Passive
• Configuration: Two-way
• Freq. response (+/- 3 dB): 60Hz - 20kHz
• Freq. range (-10 dB): 55Hz - 20kHz
• Sensitivity (2.83 v / 1 m): 96dB
• Calculated max SPL @ 1 m: 126dB
• System impedance: 8 Ohms
• LF Transducer:
  • Size: 304.9mm / 12-inch
  • Voice coil size: 64.3mm / 2.5-inch
  • Rated impedance: 8 Ohms
• HF Transducer:
  • HF driver type: Compression driver
  • Voice Coil Size: 44mm / 1.75-inch
  • Exit size: 25mm / 1-inch
  • Diaphragm material: Titanium
  • Rated impedance: 8 Ohms
  • HF (re:AES2-2012): 40W
  • Nominal coverage: 70 degree by 70 degree
• Power:
  • Continuous power: 250W
  • Programme power: 500W
  • Peak power: 1000W
  • Crossover frequency: 2.4kHz
  • Input Connector: 2 x NL4 plus barrier strip
• Hardware:
  • Rigging: 20 x M8 points plus wall bracket
  • Pole mount: No
• Enclosure:
  • Enclosure material: MDF
  • Grille material and finish: 1.2mm steel
• Dimensions unpacked:
  • Height: 562mm / 22.1-inch
  • Width front: 344mm / 13.54-inch
  • Width rear: 344mm / 13.54-inch
  • Depth: 333mm / 13.1-inch
• Dimensions packed:
  • Height: 630mm / 24.8-inch
  • Width front: 408mm / 16.06-inch
  • Width rear: 408mm / 16.06-inch
  • Depth: 371mm / 14.6-inch
• Weight:
  • Net weight: 16.7kg / 36.7lbs
  • Gross weight: 20kg / 44lbs
  • Product code: SI-12X BLACK
