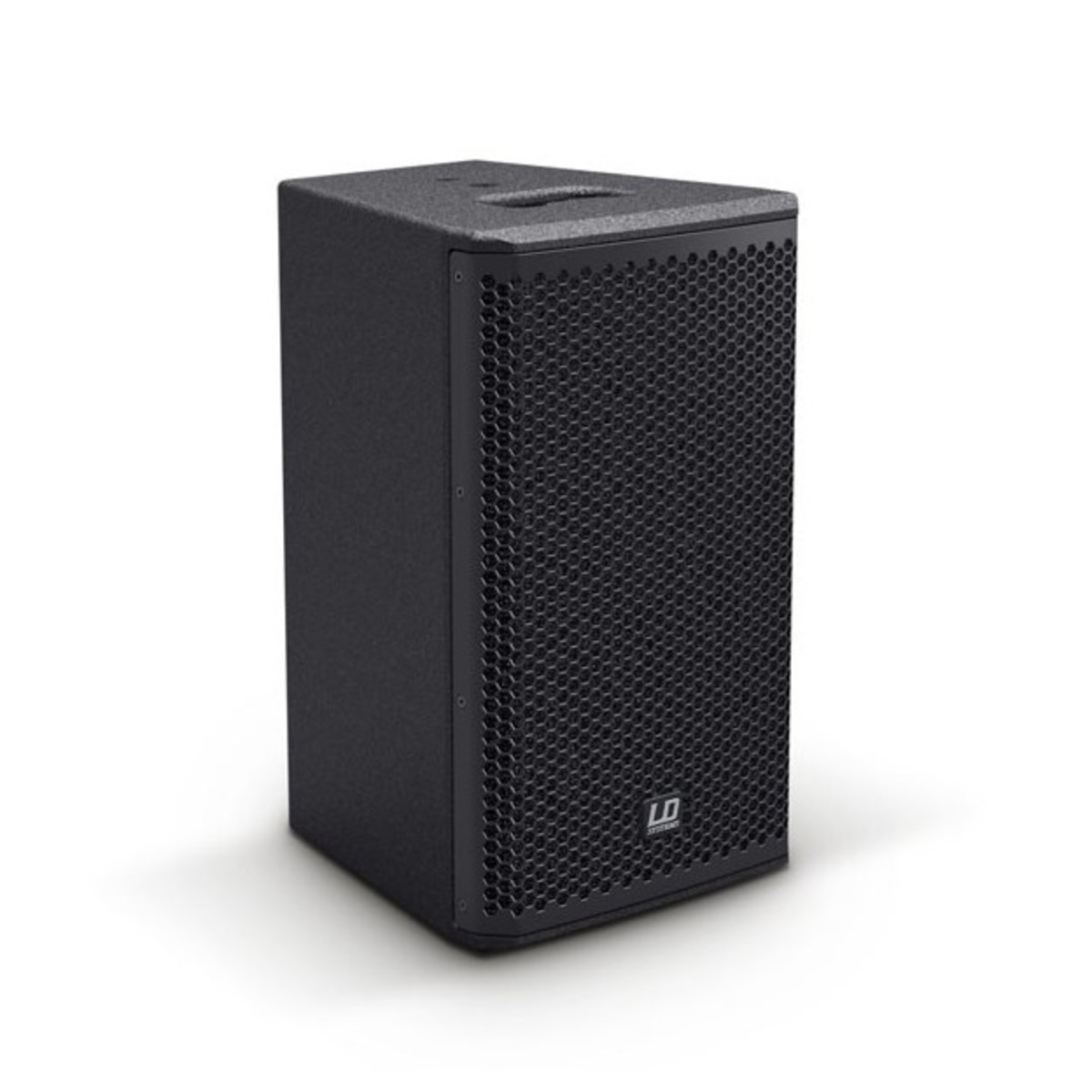

The LD Systems Stinger G3 8" Active PA Speaker has been engineered for rock-solid reliability day in, day out. This active 2-way system is a truly professional performer. With its multi-purpose bass reflex construction and carefully contoured, user-friendly presets it is equally suitable for full range, satellite or floor monitor applications. The Stinger 8 A G3 is powered by high-efficiency Class D amplification with a hefty 300 watts RMS output. It drives a custom-designed 8” woofer and BMS compression driver delivering a punchy low end and smooth, crisp highs. HF waveguide has been designed using BEM, the numerical modelling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern.
Extraordinary Strength and Durability
The Stinger 8 A G3 also incorporates LD Systems’ proprietary DynX DSP technology to ensure top-level performance with maximum clarity and punch at all times. Processing includes crossover and multiband limiter functions for accurate time alignment and pristine, distortion-free audio. Designed to be a real workhorse throughout, the enclosure is made of rigid birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the Stinger® 8 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.
Features
2-way active 8” bass reflex PA speaker
High-efficiency 300 watts RMS digital power stage and 129 dB max. SPL
Multi-purpose design for fullrange, satellite and monitor applications
Application presets for quick frequency response contouring
BEM optimized HF waveguide for uniform coverage
8” custom woofer and BMS compression driver
DynX® DSP technology for distortion-free performance
2 line/mic input channels with individual gain controls plus mono mix out
12 mm birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
Shock-resistant front grill provides maximum speaker protection
36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
Large selection of smart installation and transport accessories
Specifications
Product Type: PA Loudspeaker
Type: Active
Low/Mid Driver Dimensions: 8 "
Woofer Size: 203.2 mm
Woofer Magnet: Ferrite
Woofer Brand: Custom-Made
Woofer Voice Coil: 2 "
Woofer Voice Coil (mm): 50.8 mm
Horn: CD Horn
HF Driver Dimensions: 1 "
HF Driver Size: 25.4 mm
HF Driver Magnet: Ferrite
HF Driver Brand: BMS
HF Driver Voice Coil: 1 "
HF Driver Voice Coil: 25.4 mm
Amplifier: Class D
Dispersion (H X V): 90 X 50 &Deg;
RMS: 300 W
Peak Power: 600 W
Frequency Response: 70 - 20000 Hz
Max. SPL (Peak): 125 Db
Protection Circuits: Multiband Limiter , Over Voltage , Over-Current , Thermal Overload
Input Sensitivity: -9 Dbu
Controls: 2 X Gain , 2 X Mic/Line , Mode
Indicators: Limit , Mic , Mode , On , Protect (Protection Circuit Engaged) , Signal
Line Inputs: 2
Line Input Connectors: 6.3 mm Jack , XLR
Line Outputs: 1
Line Output Connectors: XLR
Operating Voltage: 100 - 120 V / 50 - 60 Hz Or 200 - 240 V / 50 - 60 Hz (Automatic Switching)
