Full Description

Phenomenal flexibility

When it comes to finding the perfect PA system, you need something that fits your needs. Some speakers are better at one thing, whilst some are better at others. That can cause you to end up needing multiple systems for different events or performances. But with the LD Systems ICOA series, you have a powerful, versatile system that is ideal for a huge variety of applications.

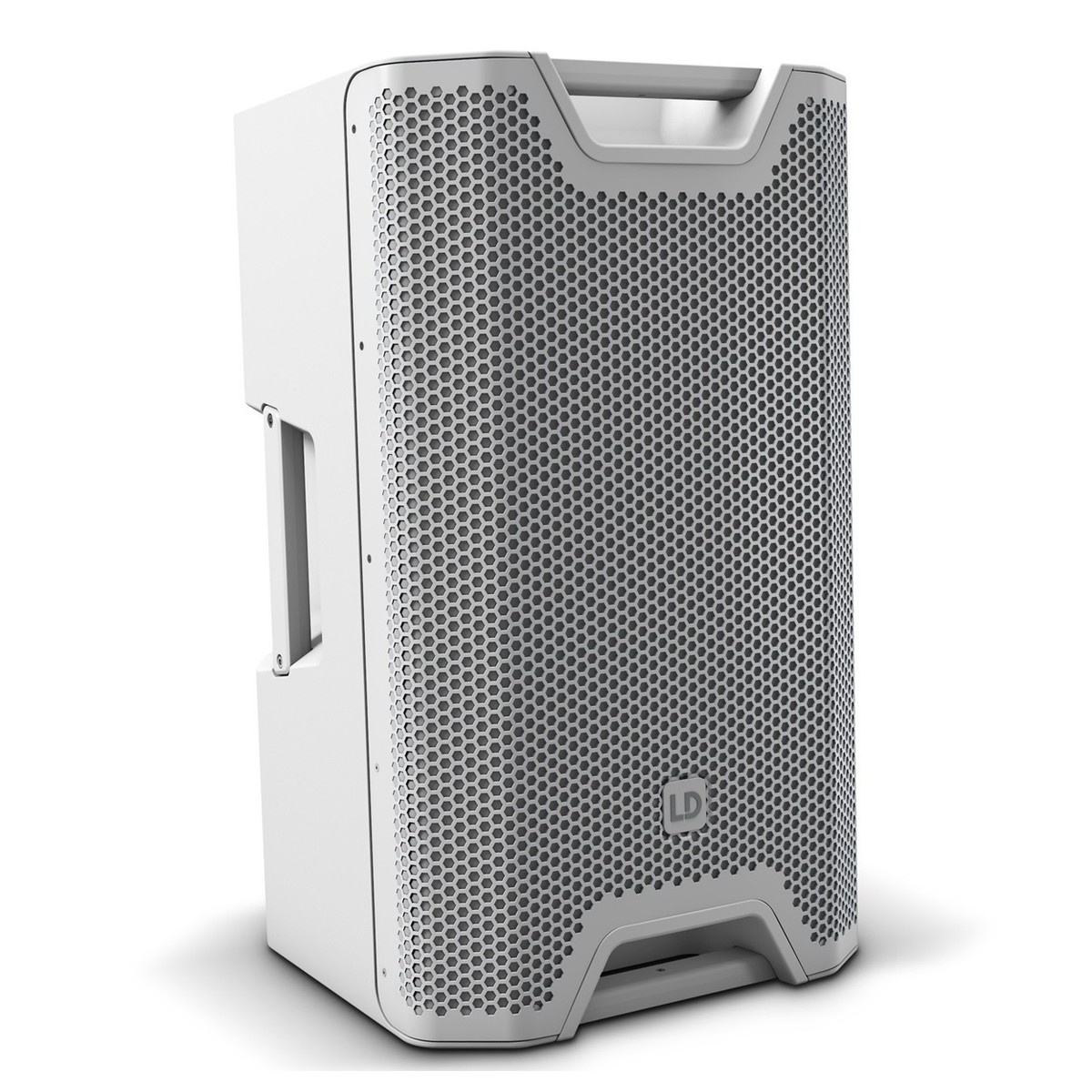

From DJs and bands, to schools and conferences - ICOA loudspeakers give you phenomenal sound for any event. The ICOA 12 AW is equipped with a custom-made horn-loaded coaxial woofer. This unique design combines the woofer with a high-performance compression driver and a horn, giving you an incredibly tight, defined sound with an exceptional bass response. You can even deploy your system without the need for a subwoofer, because ICOA loudspeakers deliver a thunderous low-end without sounding loose or muddy.

You've also got plenty of options when it comes to positioning. Because of the rotating BEM-optimised CD horn that forms part of the ICOA 12 AW's coaxial design, you can utilise your loudspeaker vertically or horizontally with no detrimental effects on your sound. Plus, with a dual-tilt pole receptacle as well as six M10 rigging points, mounting and installing your speaker is quick and easy. Whether you need a satellite, a full-range loudspeaker, or a precise stage monitor, the ICOA series gives you everything you need to deliver that legendary LD Systems sound.

Features

• A genuine all-rounder for full-range, satellite and monitor applications
• 126 dB max. SPL and 1200 W peak power
• Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
• Horn-loaded woofer
• DynX DSP with 4 presets, 3-band EQ and delay function
• 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
• 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
• 6 x M10 flying points
• Shock-resistant front grille for optimal protection of the speaker
• 4 aluminium grips with ergonomic, rubber surface
• Extensive, optionally available accessories for installation and transport

Specifications

• Type: Powered
• Colour: White (RAL 9003)
• Low/mid driver dimensions: 12 "
• Woofer size: 304.8 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Horn: BEM optimized CD Horn
• HF driver dimensions: 1 "
• HF Driver Size: 25.4 mm
• HF driver magnet: Ferrite
• HF driver brand: Custom-made
• HF driver voice coil: 1 "
• HF Driver Voice Coil: 25.4 mm
• Amplifier: Class D
• Dispersion: (H x V)90 ° - 50 °
• RMS: 300 W
• Peak power: 1200 W
• Frequency response: 50 - 20000 Hz
• Crossover frequency: kHz 2 kHz
• Max. SPL (peak): 126 dB
• Protection circuits: Multiband limiter , over voltage , over-current , thermal overload
• Controls: 2 x gain , On / off switch , Rotary/push encoder
• Indicators: LC display
• Mic/ line inputs: 6.3 mm jack Combination sockets (symmetrical) , XLR
• Line inputs: 1
• Line input connectors: 3.5 mm TRS
• Line outputs: 1
• Line output connectors: 3.5 mm TRS
• Operating voltage: SMPS
• Power consumption: 150 W
• Ambient temperature ( in operation ): 0 - 40 °C
• Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
• Relative Humidity: Less than 80 , not condensing
• Fuse: T4AL 250 V
• Cabinet material: Polypropylene
• Cabinet construction :Bass Reflex
• Mounting: 36mm flange (0°, 5°) , 6 x M10 flying points
• Monitor angle: 55 °
• Width: 375 mm
• Height: 635 mm
• Depth: 396 mm
• Weight: 19,95 kg
• Accessories: Power cord
